| 브랜드 이름: | WONDERY |
| 모델 번호: | RT2-135-9 |
| 모크: | 1세트 |
| 가격: | TO BE NEGOTIATED |
| 배달 시간: | 60 근무일 |
| 지불 조건: | L/C, D/P, T/T, 웨스턴 유니온 |

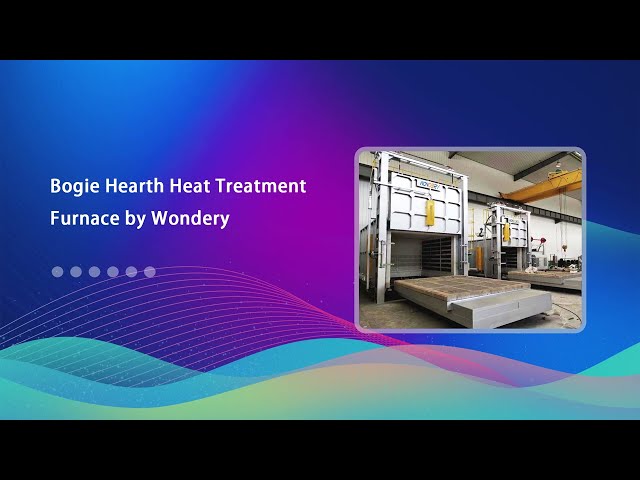

RT2-135-9 Electric Bogie Hearth Furnace | 135KW Industrial Heat Treatment Furnace for Gear Quenching | WUXI WONDERY INDUSTRY EQUIPMENT CO., LTD
WUXI WONDERY INDUSTRY EQUIPMENT CO., LTD proudly presents the RT2-135-9 Electric Bogie Hearth Furnace, a high-performance industrial furnace designed for precision heat treatment applications such as gear quenching and metal processing. Engineered with advanced temperature control and robust structural components, this furnace ensures efficient, uniform heating with minimal energy consumption. Ideal for heavy-duty operations, it supports a maximum loading capacity of 3 tons and operates at a rated temperature of 950°C, making it a reliable solution for demanding industrial environments.
The furnace features a fully lined refractory fiber structure, ensuring excellent thermal insulation and durability. Its innovative bogie hearth design allows seamless loading and unloading of materials, enhancing operational efficiency. Equipped with a Shimaden temperature controller and a user-friendly 10.1-inch touch screen, the furnace offers precise temperature management, real-time data recording, and overtemperature protection. With customizable heating zones and a power-regulated system, it delivers consistent performance for critical heat treatment processes.
Key Features:
High-Temperature Efficiency: Rated power of 135KW with adjustable output (1–100%) for optimized energy use.
Uniform Heating: Temperature uniformity ≤ ±10°C across the effective working space (2000×1000×750mm).
Advanced Control System: Shimaden intelligent temperature controller with PID regulation, data logging, and communication interfaces.
Durable Construction: Reinforced steel body, high-temperature refractory fiber lining, and CrMnN bogie face plate resistant to wear and scaling.
Safety & Automation: Integrated overtemperature alarms, motorized bogie and door movements, and interlock safety mechanisms.
Technical Parameters Table
| No. | Item | Technical Specifications |
|---|---|---|
| 1 | Rated Power | 135KW (1–100% adjustable) |
| 2 | Rated Temperature | 950°C (normal working temperature: 850°C) |
| 3 | Effective Workspace | 2000×1000×750mm (L×W×H) |
| 4 | Maximum Load Capacity | 3 tons |
| 5 | Temperature Uniformity | ≤ ±10°C |
| 6 | Heating Elements | 0Cr25Al5 resistance strips |
| 7 | Control System | Shimaden PID controller + 10.1" touch screen |
| 8 | Power Supply | 380V, 3-phase, 50Hz |
| 9 | Furnace Lining | High-temperature refractory fiber |
| 10 | Bogie Movement | Motor-driven with speed reducer |
